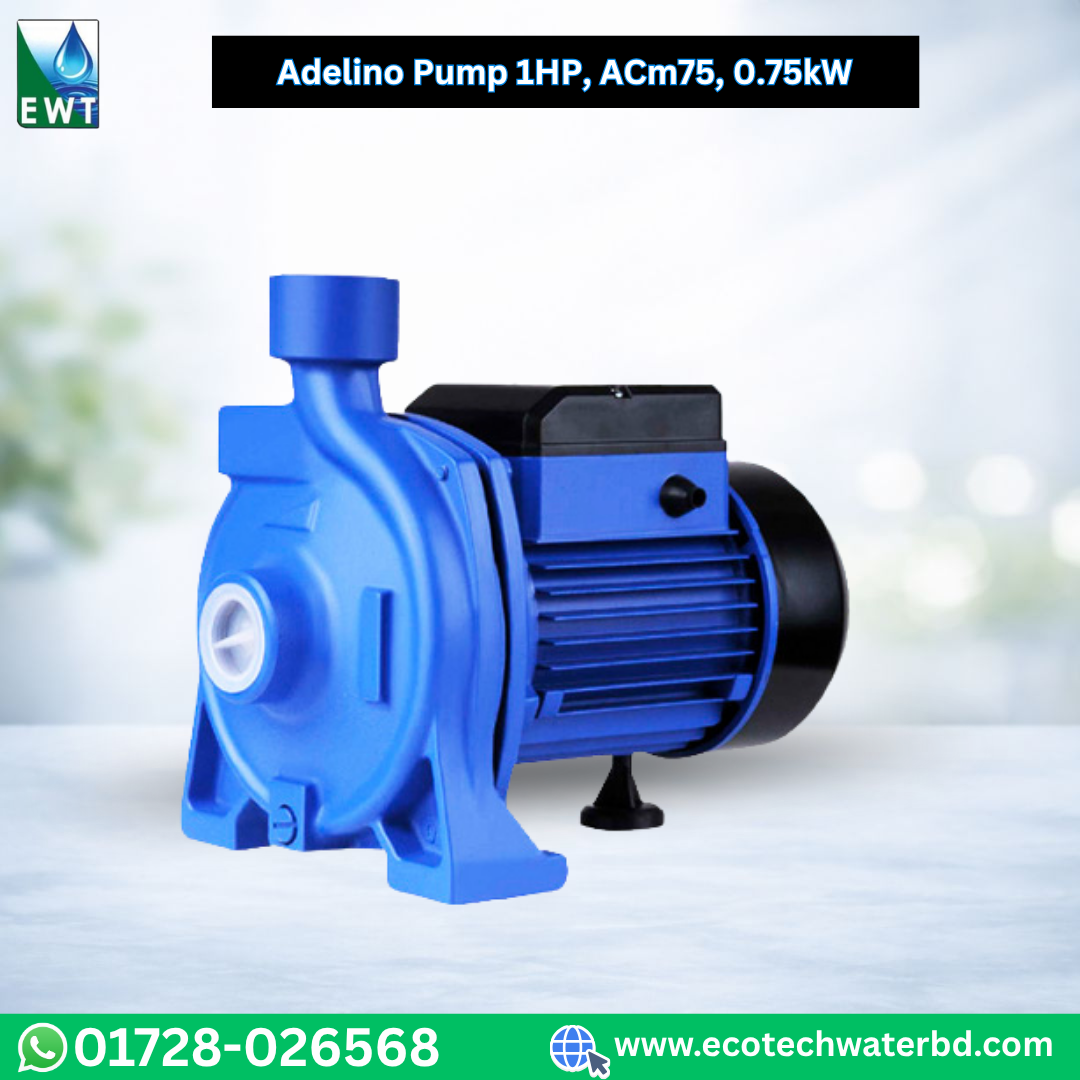

Adelino Pump 1HP, ACm75, 0.75kW
- Model: ACm75
- Brand: ADELINO
- Power: 0.75kW，1HP，220V/50Hz，1 Phase
- Q（m³/h): H（m)
- Max.Flo W m3/h: 7.2
- Max.Head (m): 32
- Inlet Outlet (Inch): 1*1
- Max.Suction (m): 7
- Origin in Germany
- Made in CHINA
Call / WhatsApp : 01728026568
Adelino Pump 1HP ACm75 0.75kW Centrifugal Water Pump
The Adelino Pump 1HP ACm75 is a reliable and compact single-phase centrifugal water pump designed for efficient water supply, water transfer, pressure boosting, irrigation, and various residential and light commercial applications. With its compact construction, strong suction performance, and efficient motor, the Adelino ACm75 water pump is a practical solution for everyday clean water pumping requirements.
Powered by a 0.75 HP motor, the Adelino ACm75 is designed to deliver a maximum flow rate of 8.4 m³/h and a maximum head of up to 55 meters. Its performance makes it suitable for homes, gardens, nurseries, agricultural applications, poultry farms, fish farms, and other clean-water systems where dependable water pressure and transfer are required.
Why Choose Adelino ACm75 Water Pump?
The Adelino 1HP centrifugal water pump combines efficient performance with durable construction. Its 100% copper winding motor, built-in thermal protection, and enclosed fan cooling system help support stable and reliable operation.
The pump can provide a suction head of up to 7 meters, making it suitable for many common water-source and transfer applications. It is designed for clean water and similar non-corrosive liquids that do not contain abrasive particles.
Key Performance Specifications
- Brand: Adelino
- Model: ACm75
- Motor Power: 0.75 HP
- Motor Power: 0.55 kW
- Pump Type: Single-Phase Centrifugal Water Pump
- Maximum Flow: 8.4 m³/h
- Maximum Head: 55 meters
- Maximum Suction Head: 7 meters
- Maximum Working Pressure: 6 bar
- Liquid Temperature: Up to +40°C
- Ambient Temperature: Up to +40°C
- pH Range: 6.5–8.5
- Voltage Tolerance: ±10% of rated voltage
Durable Construction & Motor Protection
The Adelino ACm75 1HP water pump is manufactured with durable components for dependable everyday operation.
- Pump Body: Cast Iron
- Impeller: Brass / 304 Stainless Steel
- Shaft: 304 Stainless Steel + 45#
- Mechanical Seal: Ceramic / Graphite / NBR Rubber
- Motor: 2-Pole Asynchronous Motor
- Motor Winding: 100% Copper
- Cooling: Fully Enclosed Fan Cooling
- Thermal Protection: Built-in Thermal Protector
- Protection Class: IPX4
- Insulation Class: F
- Bearing: NSK bearing available as an option
These features help the pump maintain reliable performance while providing protection against common operating conditions.
Adelino ACm75 Water Pump Applications
The Adelino 1HP centrifugal pump can be used for a wide range of clean-water applications, including:
- Residential water supply and transfer
- Garden and lawn irrigation
- Small agricultural irrigation
- Greenhouse and nursery water supply
- Poultry farm water supply
- Fish farming and aquaculture
- Water pressure boosting
- Water circulation systems
- Clean water transfer
- Light commercial water applications
- Various water treatment equipment
Its compact design and efficient performance make the Adelino ACm75 a suitable choice where dependable water transfer and pressure are important.
Adelino Pump 1HP ACm75 in Bangladesh
Looking for an Adelino ACm75 water pump in Bangladesh? Ecotech Water Technology provides reliable water treatment equipment, pumps, accessories, and technical support for residential, commercial, and industrial water systems.
We can also assist you in selecting the right pump according to your water source, required flow, delivery height, suction distance, and application.
Why Buy from Ecotech Water Technology?
Genuine & reliable water treatment products
Professional technical assistance
Installation & service support
Suitable pump selection guidance
Delivery across Bangladesh
Experienced water treatment team
