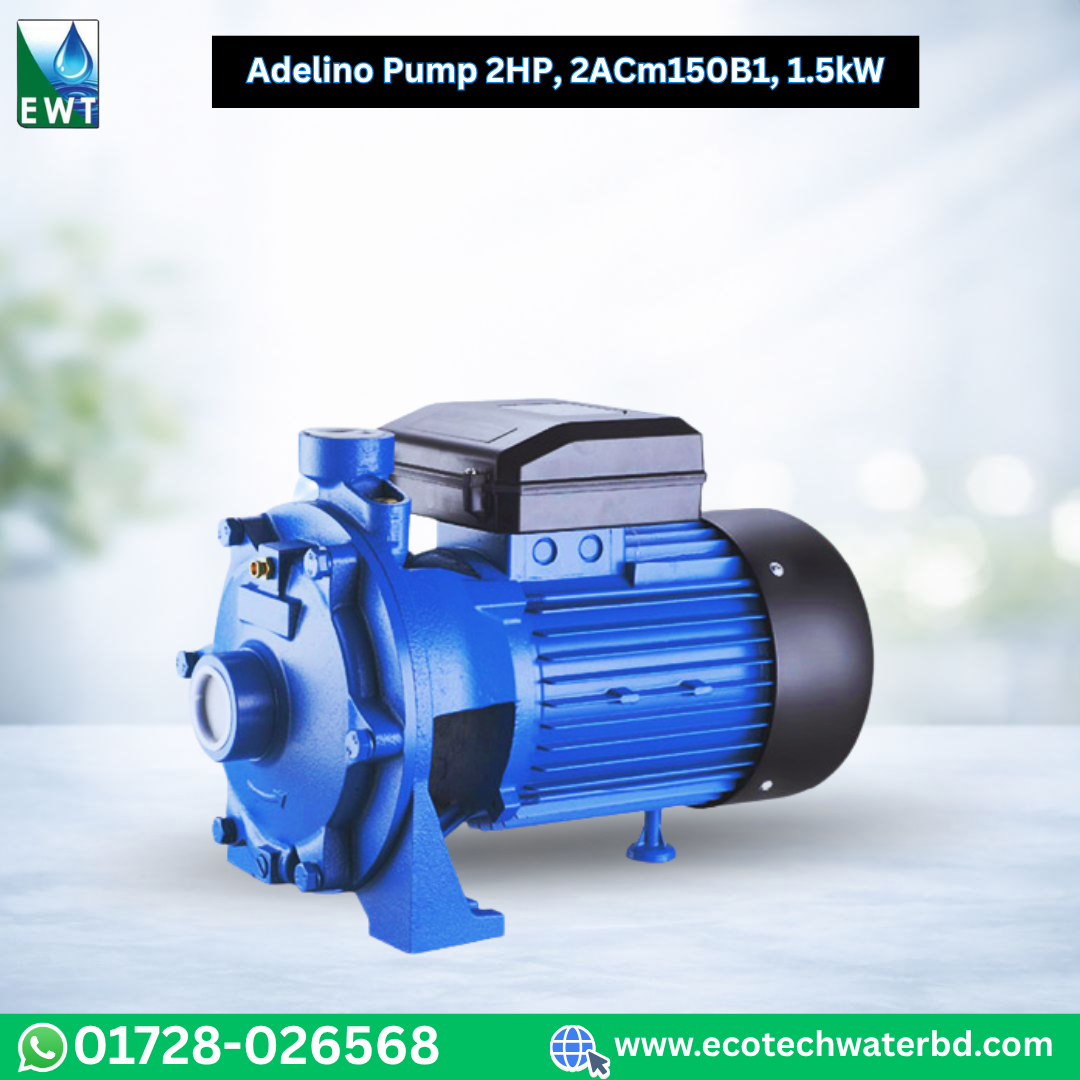

Adelino Pump 2HP, 2ACm150B1,1.5kW
- Model: 2ACm150B1
- Brand: ADELINO
- Power: 1.5kW, 2HP，220V/50Hz，1 Phase
- Q（m³/h): H（m)
- Max.Flo W m3/h: 12
- Max.Head (m): 50
- Inlet Outlet (Inch): 1.5*1.1
- Max.Suction (m): 7
- Origin in Germany
- Made in CHINA
Call / WhatsApp : 01728026568
Adelino Pump 2HP 2ACm150B1 1.5kW Single Phase Centrifugal Water Pump
The Adelino 2ACm150B1 2HP Water Pump is a reliable and high-performance single-phase centrifugal water pump designed for efficient water transfer, pressure boosting, irrigation and general water supply applications. Powered by a 1.5kW (2HP) motor, this pump can deliver a maximum flow rate of 13 m³/h with a maximum head of up to 60 meters.
Its practical performance, durable construction and single-phase 220V operation make the Adelino 2ACm150B1 suitable for homes, agricultural projects, commercial facilities, poultry farms, aquaculture systems and various water management applications in Bangladesh.
Key Features of Adelino 2ACm150B1
- 2HP / 1.5kW powerful motor
- Single-phase 220V, 50Hz
- Maximum flow rate up to 13 m³/h
- Maximum head up to 60 meters
- Maximum suction head up to 8 meters
- Reliable centrifugal pump design
- 100% copper winding motor
- Built-in thermal protection against overload
- Fully enclosed fan-cooled motor
- IP44 protection class
- Class F insulation
- Ceramic/Graphite/NBR mechanical seal
- Suitable for continuous water transfer applications
High Flow & Reliable Water Pressure
With a maximum flow rate of 13 m³/h and maximum head of 60 meters, the Adelino 2ACm150B1 can efficiently move water across different distances and elevations.
This makes it a practical choice for water supply, water transfer, irrigation, pressure boosting and water circulation systems where dependable pump performance is required.
Adelino 2ACm150B1 Applications
The Adelino 2HP centrifugal water pump can be used for a wide range of applications, including:
- Residential water supply
- Commercial water supply
- Garden and agricultural irrigation
- Greenhouse water supply
- Poultry farm water systems
- Fish farm and aquaculture water supply
- Water transfer and circulation
- Pressure boosting systems
- Clean water pumping
- Water treatment system support applications
- Industrial and commercial water management
It is designed for pumping clean water and non-corrosive liquids without abrasive particles.
Technical Specifications
| Specification | Details |
|---|---|
| Brand | Adelino |
| Model | 2ACm150B1 |
| Motor Power | 1.5kW / 2HP |
| Power Supply | Single Phase 220V / 50Hz |
| Maximum Flow | 13 m³/h |
| Maximum Head | 60 meters |
| Maximum Suction Head | 8 meters |
| Maximum Working Pressure | 7 bar |
| Liquid Temperature | Up to +40°C |
| Ambient Temperature | Up to +40°C |
| pH Range | 6.5–8.5 |
| Protection Class | IP44 |
| Insulation Class | F |
| Motor Type | 2-Pole Asynchronous Motor |
| Motor Winding | 100% Copper |
| Cooling | Fan Cooled |
| Mechanical Seal | Ceramic / Graphite / NBR |
Why Choose Adelino 2ACm150B1 from Ecotech Water Technology?
At Ecotech Water Technology, we provide reliable pumping and water treatment solutions for residential, commercial and industrial requirements.
Along with Adelino water pumps, we also supply RO plants, water purifiers, water filtration systems, water treatment plant equipment, pumps, accessories and spare parts.
Our experienced technical team can assist you in selecting the right pump based on your water flow requirement, required head, application and system design.
Looking for a 2HP Water Pump in Bangladesh?
The Adelino 2ACm150B1 2HP 1.5kW centrifugal water pump is a practical solution for water transfer, irrigation, pressure boosting, commercial water supply and various water management applications.
