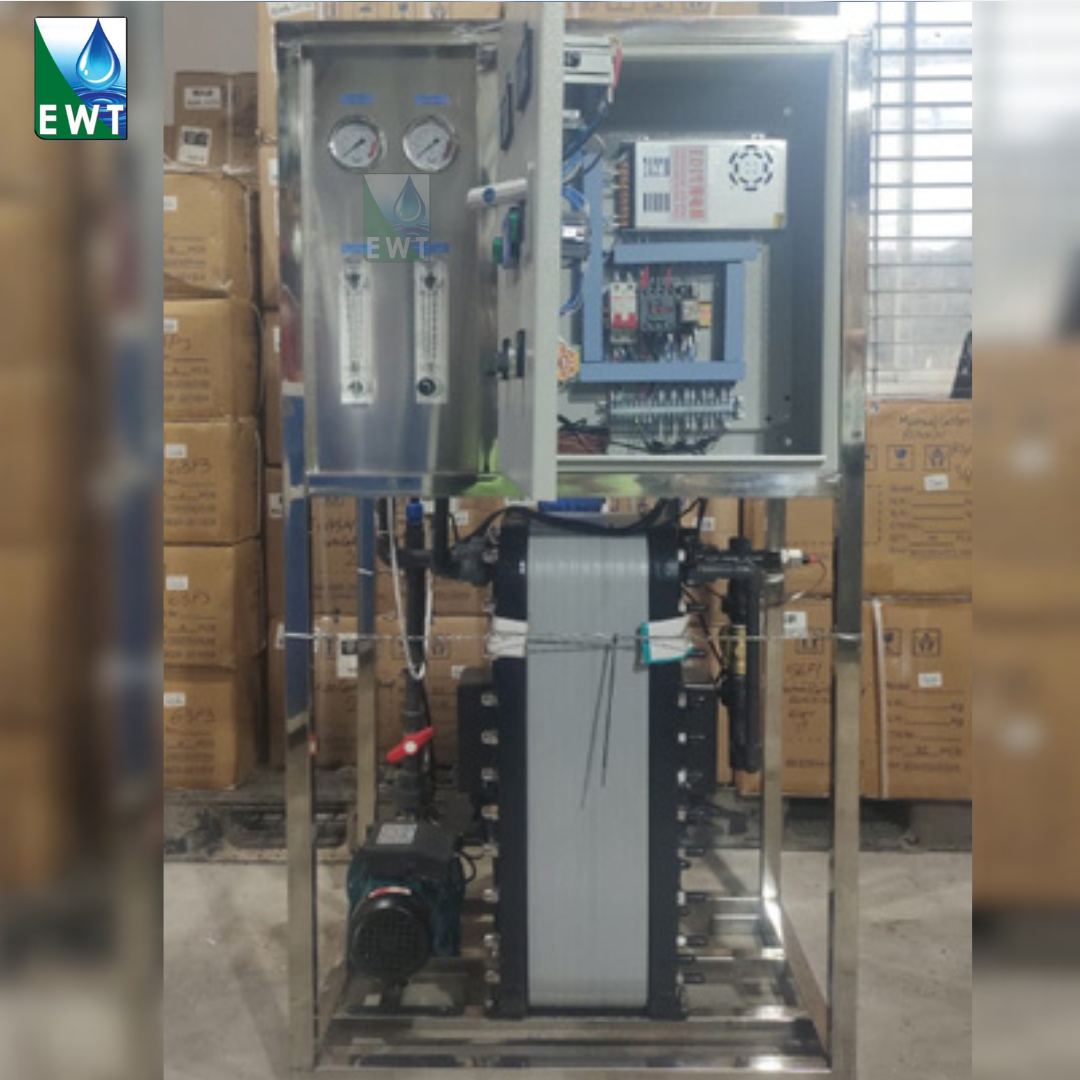

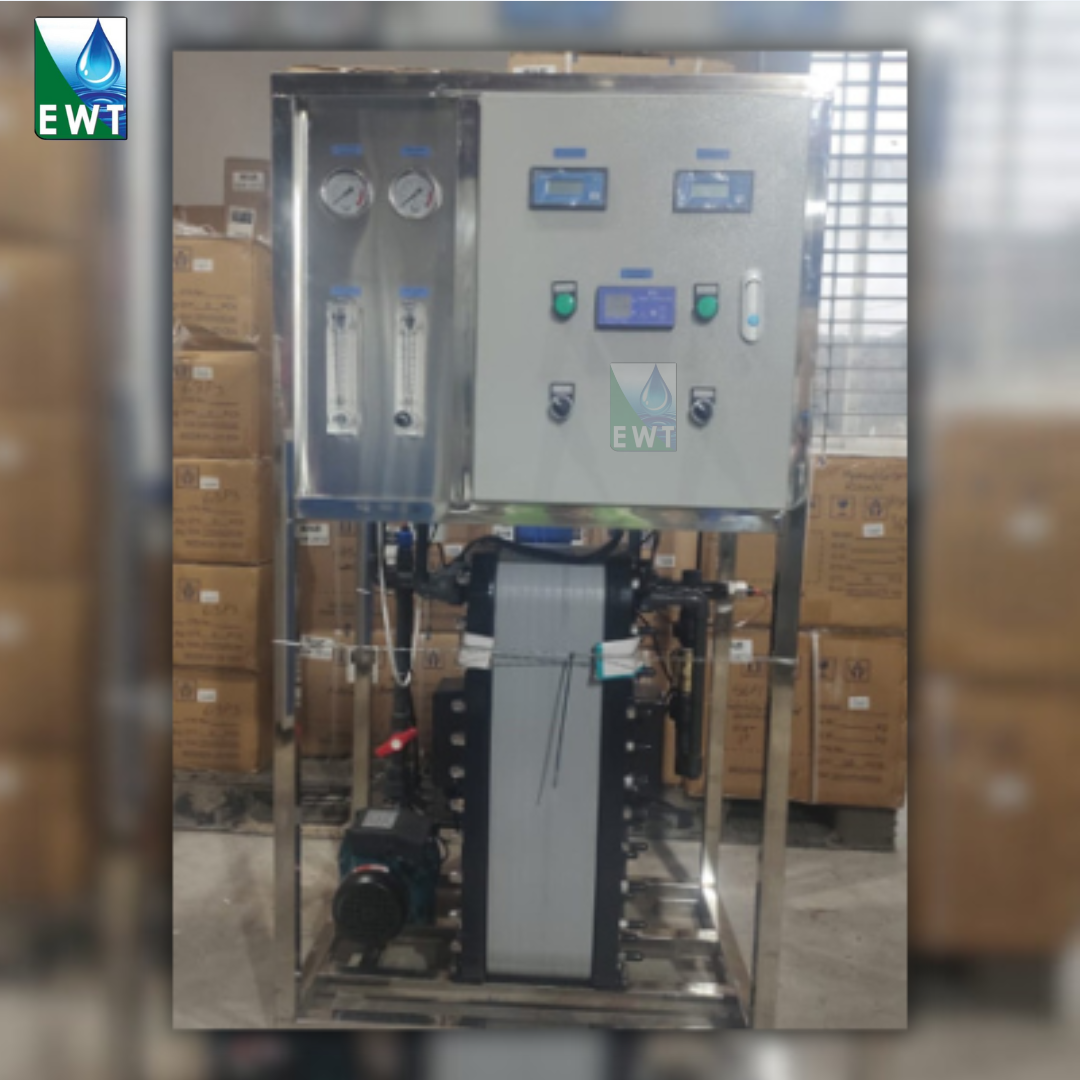

Electrodeionization (EDI)

Capacity: 1000 L/Hr

Recovery Rate: 95%

1. Different from most EDI structures on the market, the water flow passes through the power plant twice, the produced water quality is stable and high produced water quality can be obtained, and the inlet water quality requirements are wide.
2. The membrane has low voltage and low energy consumption, and the power consumption per ton of water is less than 50Wh.
3. The operating pressure is low, the inlet water pressure is about 0.2Mpa
4. Full mold design, double sealing ring design, precise and beautiful, the overall module is light in weight

RE series secondary EDI module inlet water quality requirements:

1. The incoming water is RO produced water, the conductivity is <15μs/cm)

2. pH: is 6.5~8)

3. Hardness (calculated as CaCO3): ≤1.0mg/L (recommended ≤0.1mg/L)

4. Oxidant: Cl2≤0.01mg/L, O3≤0.01mg/L (recommended value is 0)

5. Silica: ≤0.5mg/L (recommended to be less than ≤0.2mg/L)

6. Total organic carbon (TOC): ≤0.5mg/L (recommended value is 0)

7. Iron, manganese, H2S: ≤0.01mg/L (recommended value is 0)
